What is RAID 5?

RAID 5 is a redundant array of independent disks configured using disk striping with parity. Data and parity are striped evenly across all disks. Striping allows users to rebuild data in the event of a disk failure, so no one disk is the bottleneck.

RAID 5 balances reading and writing and is currently one of the most commonly used RAID methods. It has more storage space available than RAID 1 and RAID 10 configurations and provides performance comparable to RAID 0.

A RAID 5 group has a minimum of 3 HDDs, but no maximum. Because parity data is distributed across all drives, RAID 5 is considered one of the most secure RAID configurations.

RAID 5 – Stripes data using distributed parity. RAID type 5 allows Clariion to distribute parity information to reconstruct a failed disk among the disks that make up the RAID group. As with RAID 3, if a single drive in the RAID group fails, the failed disk can be rebuilt from the remaining disks in the RAID group.

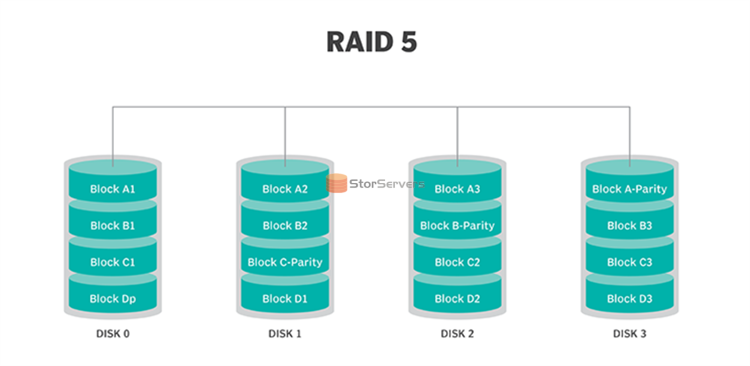

How RAID 5 works

The advantage of RAID 5 comes primarily from its combined use of disk striping and parity. Striping is the process of storing contiguous segments of data across different storage devices; it allows for better throughput and performance. However, disk striping alone does not make an array fault tolerant. Disk striping combined with parity provides RAID 5 with redundancy and reliability.

RAID 5 uses parity instead of mirroring for data redundancy. When data is written to a RAID 5 drive, parity is calculated and written to the drive. While mirroring maintains multiple copies of the data in each volume for use in the event of a failure, RAID 5 can rebuild a failed drive using parity data, which is not saved on a fixed single drive.

By saving data on each drive, any two drives can be combined to equal the data stored on a third drive, keeping data safe in the event of a single drive failure. Drives in RAID 5 are hot-swappable, meaning a failed HDD can be removed and replaced without downtime.
